Fire Type Convection
Heating Area Up to 280sq2
Efficiency 68%
Fan Two Speed Fan
Flue Diameter 150mm wide
Firebox Height 600mm
Firebox Depth 450mm
Firebox Width 715mm
Facia Height 710mm or 810mm
Facia Width 920mm or 1120mm
Recommended 4.5m flue

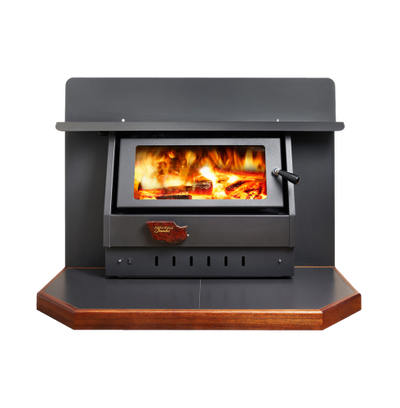

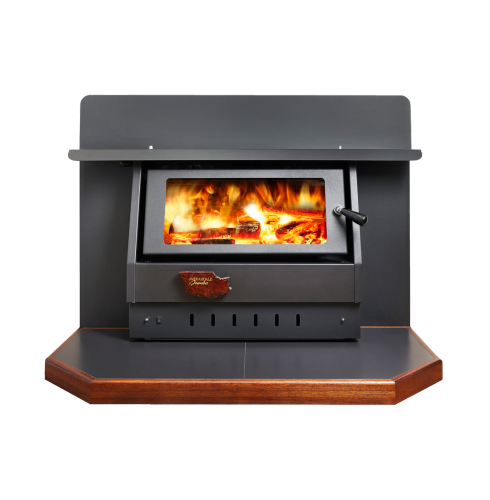

The Jumbo Built-in is a large, convection wood heater, designed for spacious, open plan areas or homes with several rooms. It features a two-speed fan for even heat distribution throughout the home and offers a grand appearance with a wide, rectangular firebox and large glass door – for entrancing views of the roaring fire.
The Jumbo Built-in is available in a choice of two fascia sizes, allowing you to select the size that best suits the scale of your fireplace area and home. Better still, since all of our built-in wood heaters are locally manufactured and made-to-order, Jarrahdale Heating and Cooling can customise your heater to ensure a precise fit.
COMMON CUSTOMISATIONS
- Flue Placement – Move the standard flue centre forward or back, to line-up with your existing chimney centre
- Fascia Size – If the standard fascia sizes are not ideal for your existing fireplace opening, we can manufacture a custom-fascia to fit
- Fan Power Cord – Position the power cord to suit the location and distance of the closest power point. The fan power cord can protrude from the left or the right side of the heater and can be extend to avoid the use of extension cords.
- Custom Chimney Covers – All chimneys are different and sometimes the standard chimney cover is too small. We will manufacture the correct chimney cover to suit your home.
All Jarrahdale Wood Heaters are made in Perth to strict Australian Standards using locally-sourced steel. Our fireboxes are made using 6mm solid steel while all other components are 8mm solid steel.
Brochure
